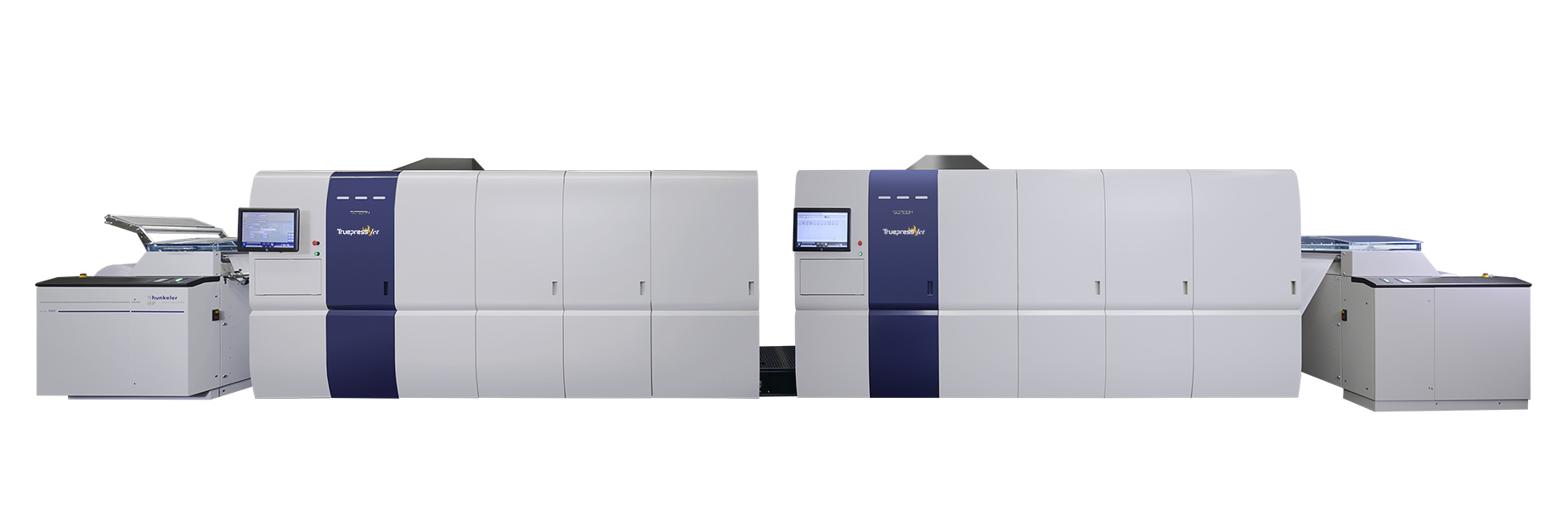

Truepress Jet520HD

Quality that opens new doors

Capitalizing on the quality, speed, accuracy, and innovation in inkjet printing,we are continually evolving the Truepress Jet520 series printing. Each new development advances our pursuit for quality that expands the boundaries of conventional inkjet concepts, taking inkjet printing to levels never previously seen.

  • Realistic images that jump off the page Truepress Jet520HD brings color to life
  • Beautiful detail and stunning color for unlimited applications
  • Astounding technology that fully expresses even detailed areas
  • The optimum added value that is most appropriate to the task

Truepress Jet520HD specifications

Printing system Inkjet Piezo single-pass DOD
Inks Truepress inks for Truepress Jet 520HD
CMYK (standard), spot color/protective coat
Resolution Max. 1,200 x 1,200 dpi
Printing speed Max. 150 m/min. (with option)*
Printing width 150 to 508 mm (6" to 20")
Media width 150 to 508 mm (6" to 20")
Media thickness 40 to 250 gsm
Dimensions (W x D x H) 4,070 x 2,370 x 2,200 mm (160.3” x 93.4” x 86.7”)
Weight Approx. 4,050 kg (Approx. 8,910 lb)

* Under SCREEN's conditions
